Specifications for

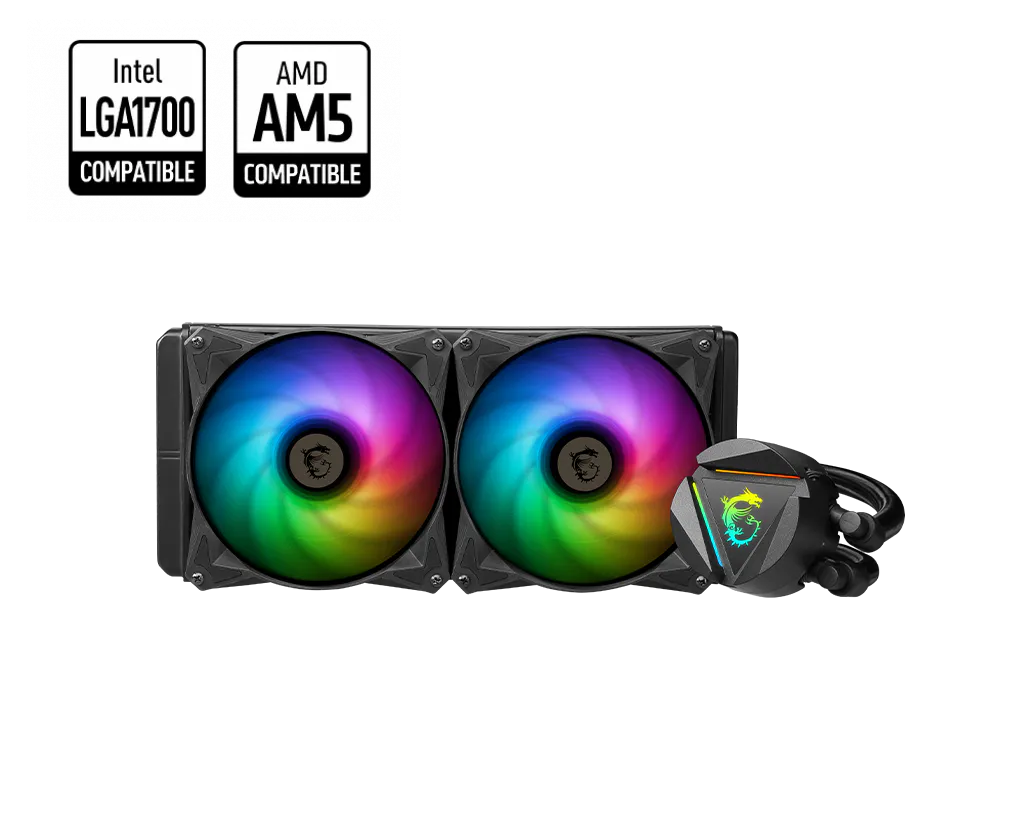

MAG CORELIQUID 280R V2
Accessories
Accessories
1 to 2 Fan PWM cable x 1
PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
AMD Socket
AMD Socket
AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Intel Socket
Intel Socket
LGA 1150/1151/1155/1156/1200/1700
LGA 1366/2011/2011-3/2066
LGA 1366/2011/2011-3/2066
Pump Power Consumption
Pump Power Consumption
4.08W
Pump Speed
Pump Speed
4200 ±10%RPM
Block Dimensions
Block Dimensions
80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches
Radiator Dimensions
Radiator Dimensions
312 x 140 x 27mm / 12.28 x 5.51 x 1.06 inches
Radiator Material
Radiator Material
Aluminum
Fan Cable Length (5V ARGB / PWM cable)
Fan Cable Length (5V ARGB / PWM cable)
550 / 350mm; 21.65 / 13.78 inches
PWM Mode
PWM Mode
Yes
Fan Lighting
Fan Lighting
ARGB
Fan Air Flow
Fan Air Flow
84.36 CFM
Fan Bearing
Fan Bearing
Two Ball Bearing
Fan Rated Current
Fan Rated Current
0.19 A
Fan Power Consumption
Fan Power Consumption
2.28 W
Fan Dimensions
Fan Dimensions
140 x 140 x 25mm / 5.51 x 5.51 x 0.98 inches
Number of Fans
Number of Fans
2
