Specifications for

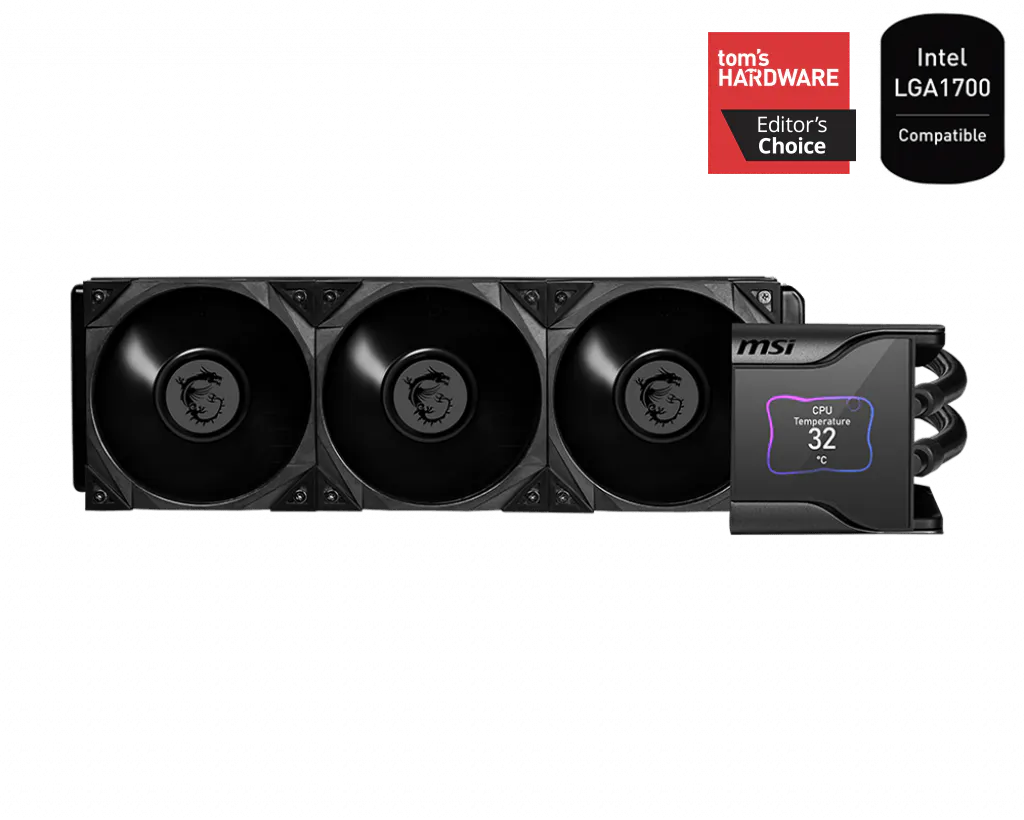

MEG CORELIQUID S360
Power Connector
Power Connector
SATA
Cold Plate Material
Cold Plate Material
Copper
Radiator Size
Radiator Size
360 mm
Interface Connector
Interface Connector
USB 2.0 pin header
Panel Brightness
Panel Brightness
500 nits
Panel Resolution
Panel Resolution
320 x 240
AMD Socket
AMD Socket
AM5 / AM4 / Socket TR4 / sTRX4 / SP3
Panel Type
Panel Type
IPS
Intel Socket
Intel Socket
LGA 1851/1700 / 1200 / 1151 / 1150 / 1155 / 1156
Panel Size
Panel Size
2.4"
Pump Connector
Pump Connector
4 pin PWM
Pump Rated Current
Pump Rated Current
0.3A
Pump Power Consumption
Pump Power Consumption
4W
Pump Speed
Pump Speed
2800 +/-300 RPM (PWM controlled)
Pump Noise Level
Pump Noise Level
21.2 dBA
Fan Connector
Fan Connector
4 pin PWM
Pump Life Expectancy
Pump Life Expectancy
50,000 Hours
Block Dimensions
Block Dimensions
95 x 95 x 83.53 mm
Radiator Dimensions
Radiator Dimensions
394 x 120 x 27mm / 15.5 x 4.7 x 1.06 inches
Radiator Material
Radiator Material
Aluminum
Fan Cable Length (5V ARGB / PWM cable)
Fan Cable Length (5V ARGB / PWM cable)
350 mm / 13.78 inches
PWM Mode
PWM Mode
Yes
Water Cooling Tube Material
Water Cooling Tube Material
Black Rubber + Mesh
Fan Air Flow
Fan Air Flow
56.2 CFM
Fan Bearing
Fan Bearing
Hydro-Dynamic Bearing
Fan Life Expectancy
Fan Life Expectancy
50,000 Hours
Fan Rated Current
Fan Rated Current
0.4 A (MAX)
Fan Power Consumption
Fan Power Consumption
4.8 W (MAX)
Fan Dimensions
Fan Dimensions
120 x 120 x 27.5mm / 4.7 x 4.7 x 1.08 inches
Number of Fans
Number of Fans
3
