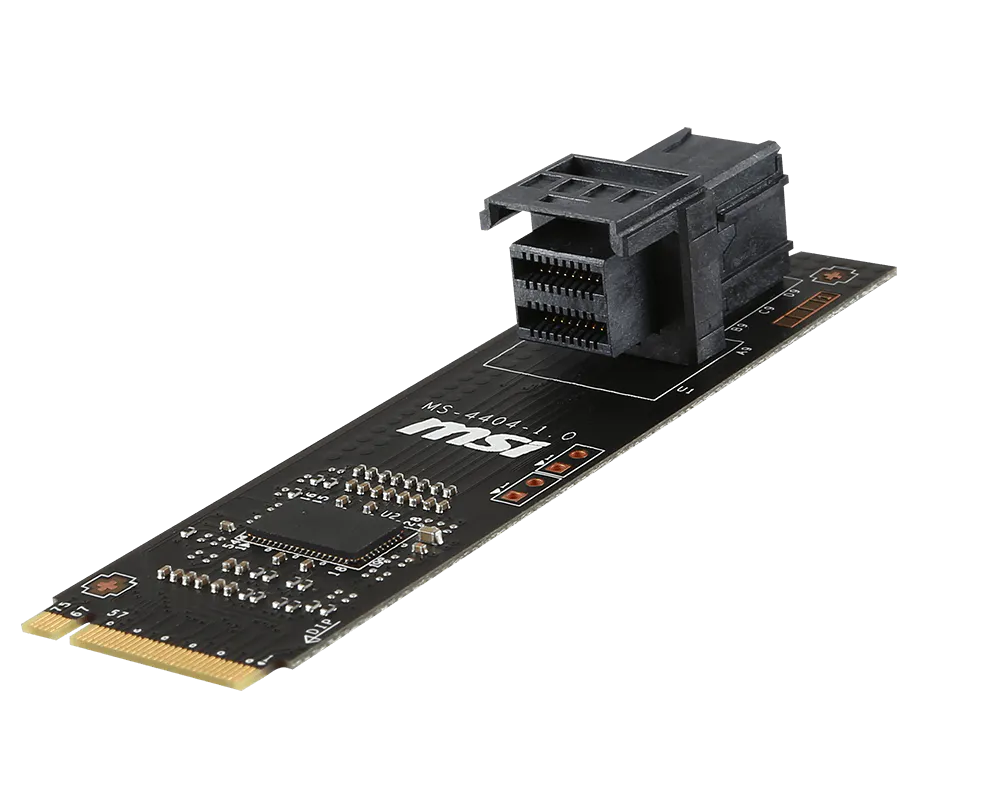

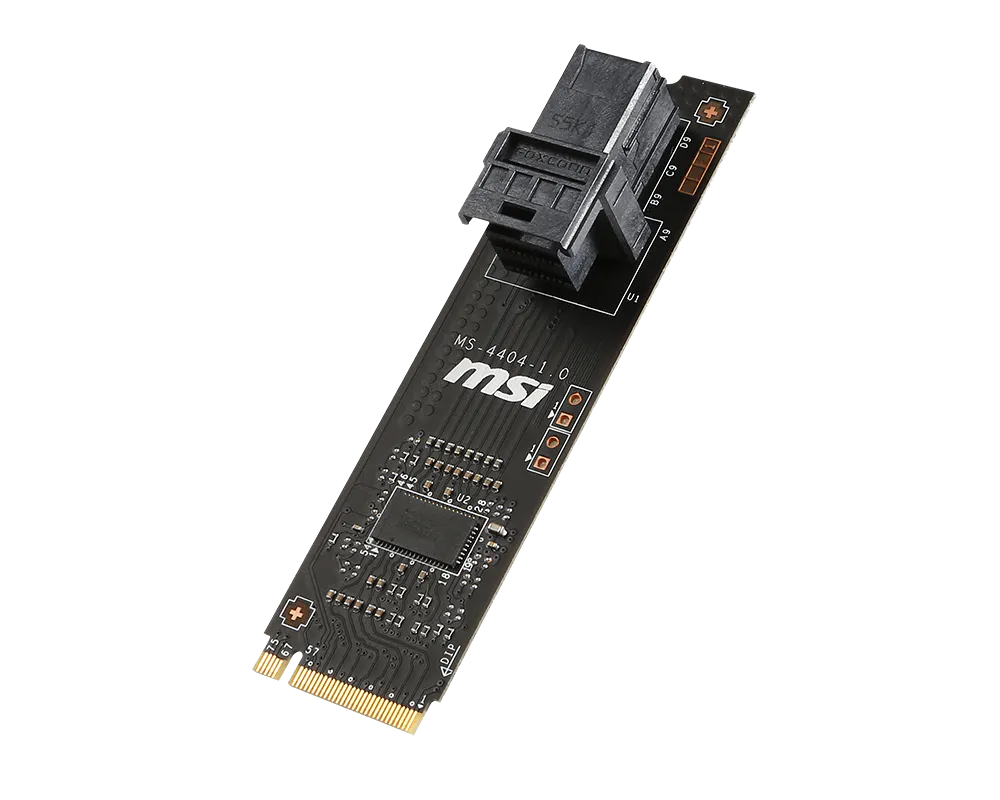

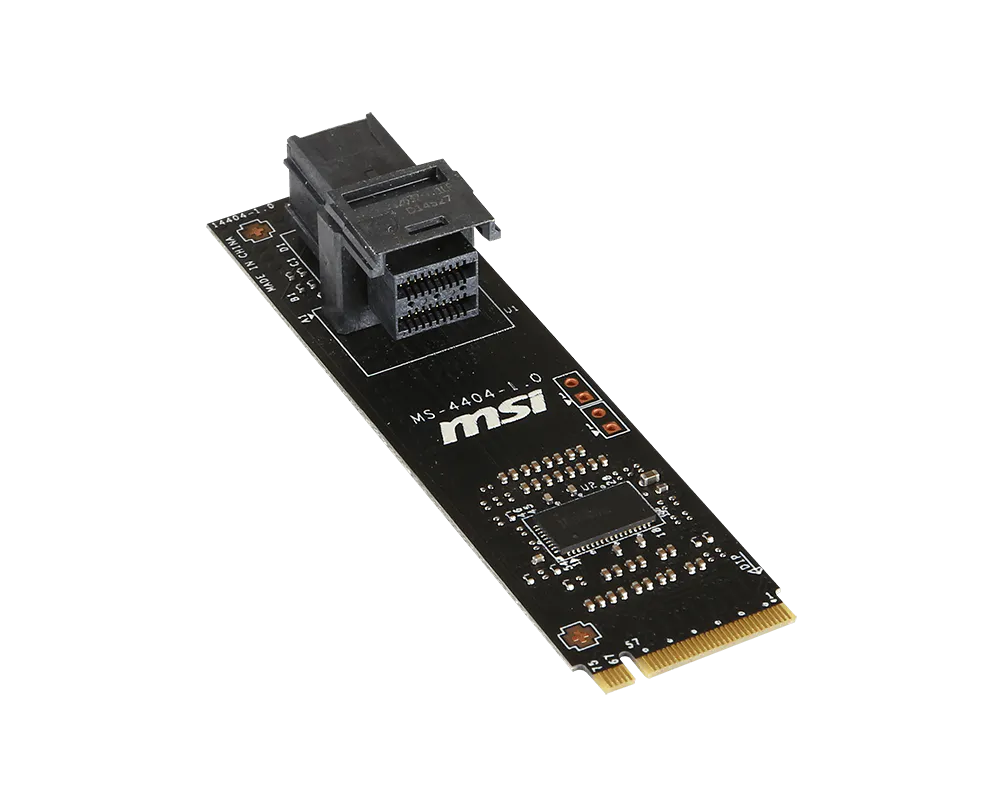

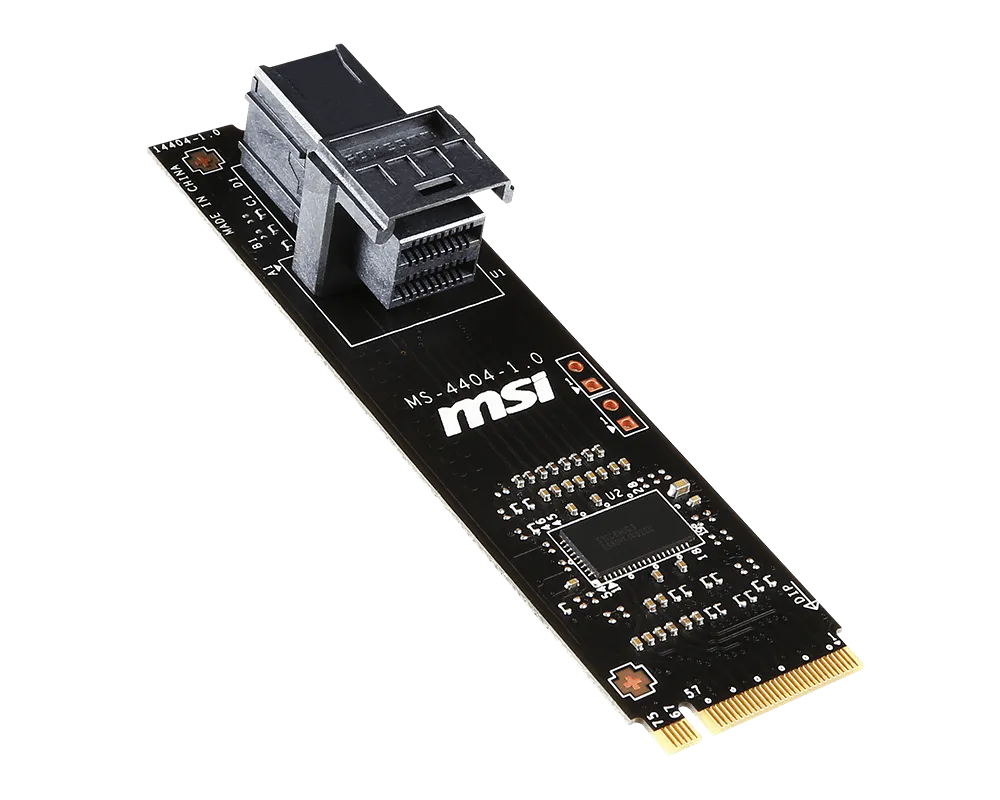

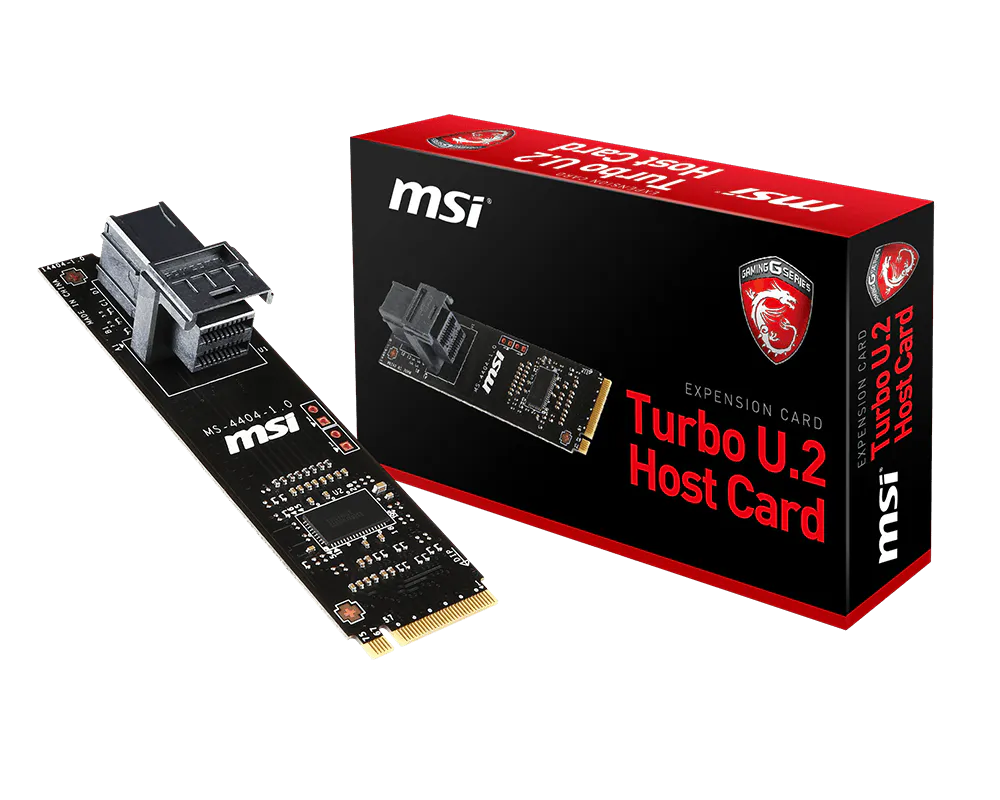

• Supports U.2 interface SSD with NVMe driver
  • U.2 redriver: The signal amplifier for better performance
  • The best compatibility: Compatible for all M.2 slot in PCI-E mode
  • Maximum Bandwidth: PCI-E 3.0 x4 (up to 32 Gb/s)
  • Input Interface: M.2 (Key M)
  • Output Interface: U.2 Host Connector up to 32 Gb/s
  • Compatible OS: Windows 7, 8, 8.1, 10
  • Compatible for M.2 2280 slot

ENJOY WHIZZING SPEED WITH THE LATEST U.2 SSD

The latest Intel® 750 series SSD, which adopts U.2 (SFF 8639) interface, with NVMe supported can provides 2.4 GB/s data transferring speed.

ADD-IN CARD VIA M.2 SLOT

The latest Intel® 750 series SSD, which adopts U.2 (SFF 8639) interface, with NVMe supported can provides 2.4 GB/s data transferring speed.

U.2 REDRIVER

The U.2 redriver is a kind of amplifier which can maintain the strength of the transfer signal and keep the performance best.

circle

RAID Supported on Z170 Motherboard

The Z170 motherboards which adopt twin turbo M.2 slots support PCI-E RAID. It means the total bandwidth will be the amazing 64 Gb/s.

U.2 Performance

Delivering performance up to 64 Gb/s when used in RAID 0, the U.2 interface pushes the latest generation SSDs to their limits.

rwdimg

*Tested with Turbo U.2 on Z170 GAMINGM7 using 2x Intel 750 SSD in RAID 0.



All images and descriptions are for illustrative purposes only. For detailed specifications, please consult the product specifications page.

˄
