Specifications for

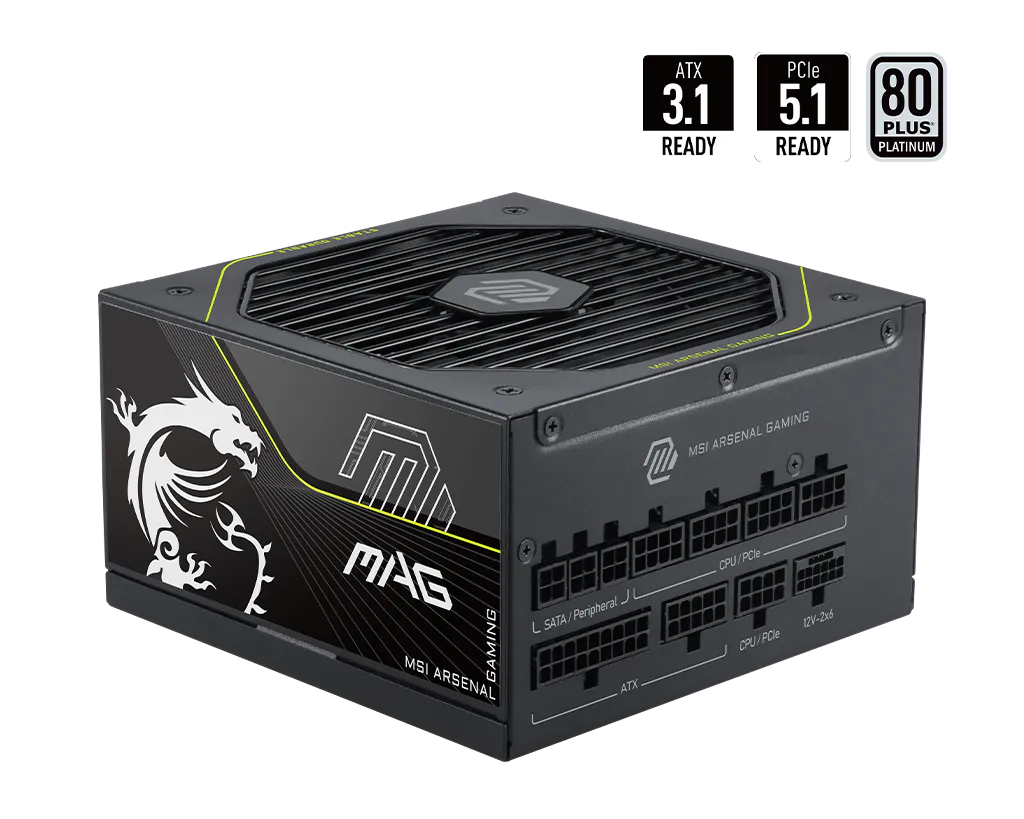

MAG A1000PLS PCIE5
Modular
Modular
Yes (full modular)
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Input Voltage Range
Input Voltage Range
100-240V~
Power Watt
Power Watt
1000W
ATX (24 pin)
ATX (24 pin)
1
Input Frequency
Input Frequency
50-60Hz
EPS (8 pin)
EPS (8 pin)
1
Efficiency Rating
Efficiency Rating
80 PLUS Platinum (up to 92%)
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
1 (600W)
EPS (4+4 PIN)
EPS (4+4 PIN)
1
Fan Size
Fan Size
135 mm
PCI-E (6+2 pin)
PCI-E (6+2 pin)
4
Dimensions (DxWxH)
Dimensions (DxWxH)
150 x 150 x 86mm / 5.9 x 5.9 x 3.4 inches
SATA (15 pin)
SATA (15 pin)
6
PFC Type
PFC Type
Active PFC
MOLEX (4 pin)
MOLEX (4 pin)
3
Protection
Protection
OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
