Specifications for

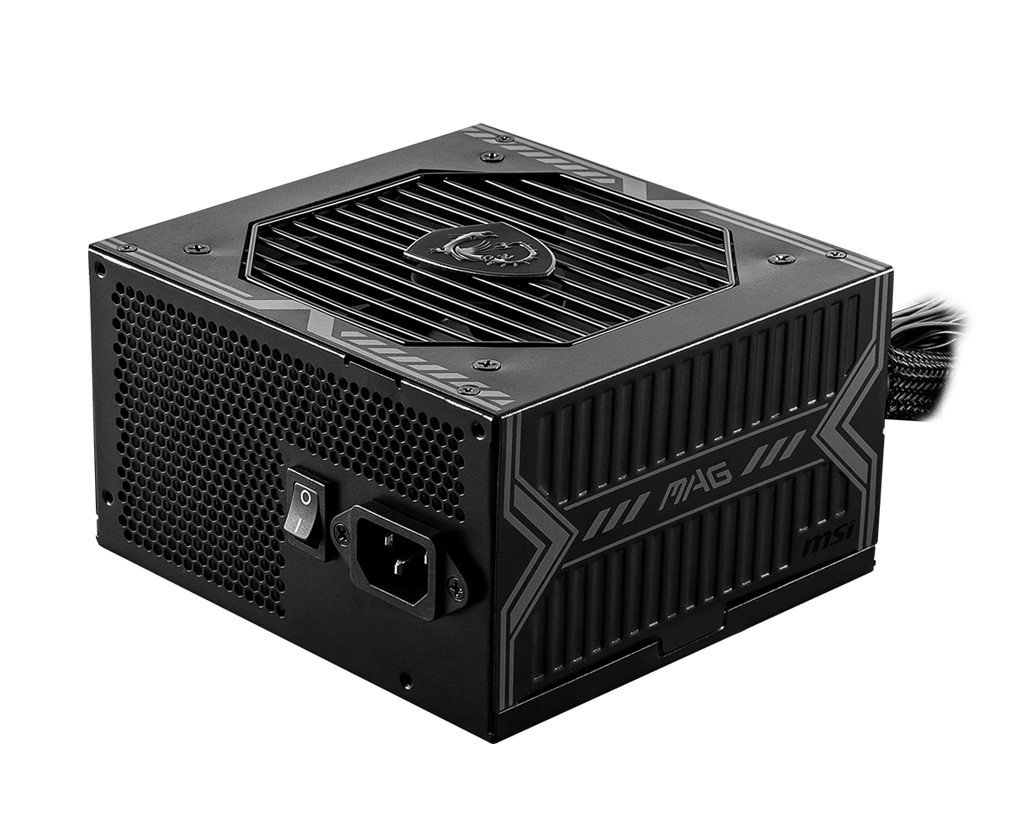

MAG A650BN
Modular
Modular
No
Fan Bearing
Fan Bearing
Sleeve Bearing
Input Voltage Range
Input Voltage Range
100~240 VAC
Power Watt
Power Watt
650W
ATX (24 pin)
ATX (24 pin)
1
Input Frequency
Input Frequency
50~60 Hz
Efficiency Rating
Efficiency Rating
80 PLUS Bronze (up to 85%)
EPS (4+4 PIN)
EPS (4+4 PIN)
1
Fan Size
Fan Size
120 mm
PCI-E (6+2 pin)
PCI-E (6+2 pin)
2
Dimensions (DxWxH)
Dimensions (DxWxH)
140 x 150 x 86 mm
SATA (15 pin)
SATA (15 pin)
5
PFC Type
PFC Type
Active PFC
MOLEX (4 pin)
MOLEX (4 pin)
2
Protection
Protection
OCP / OVP / OPP / OTP / SCP
FDD (4 pin)
FDD (4 pin)
1
