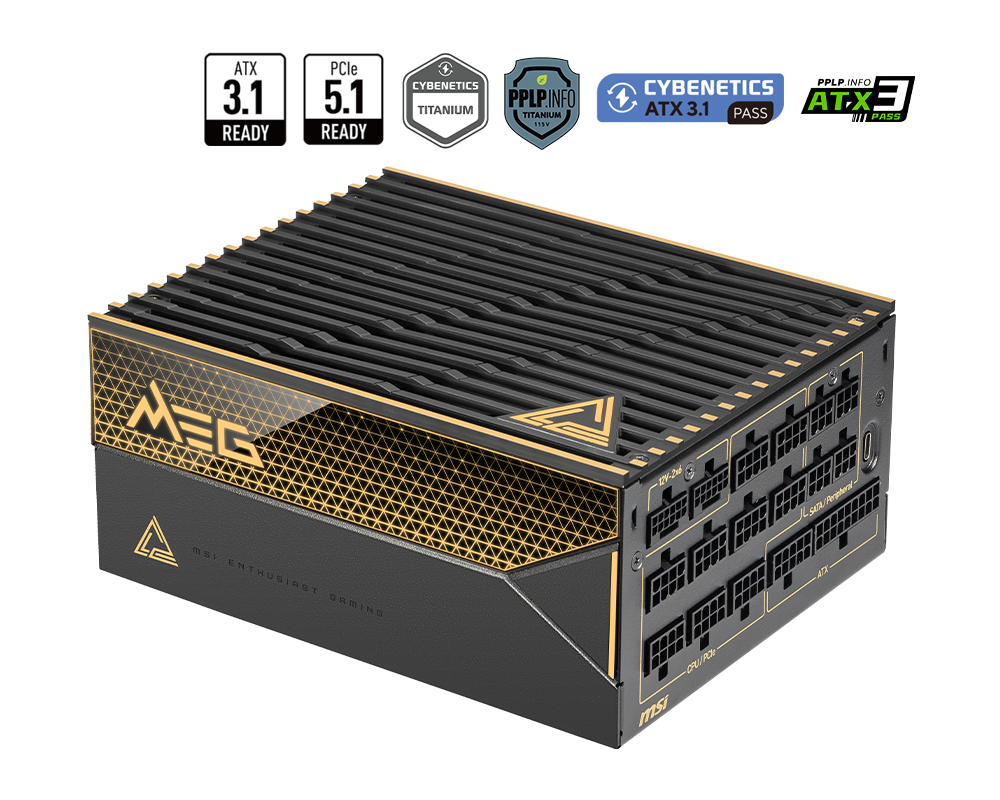

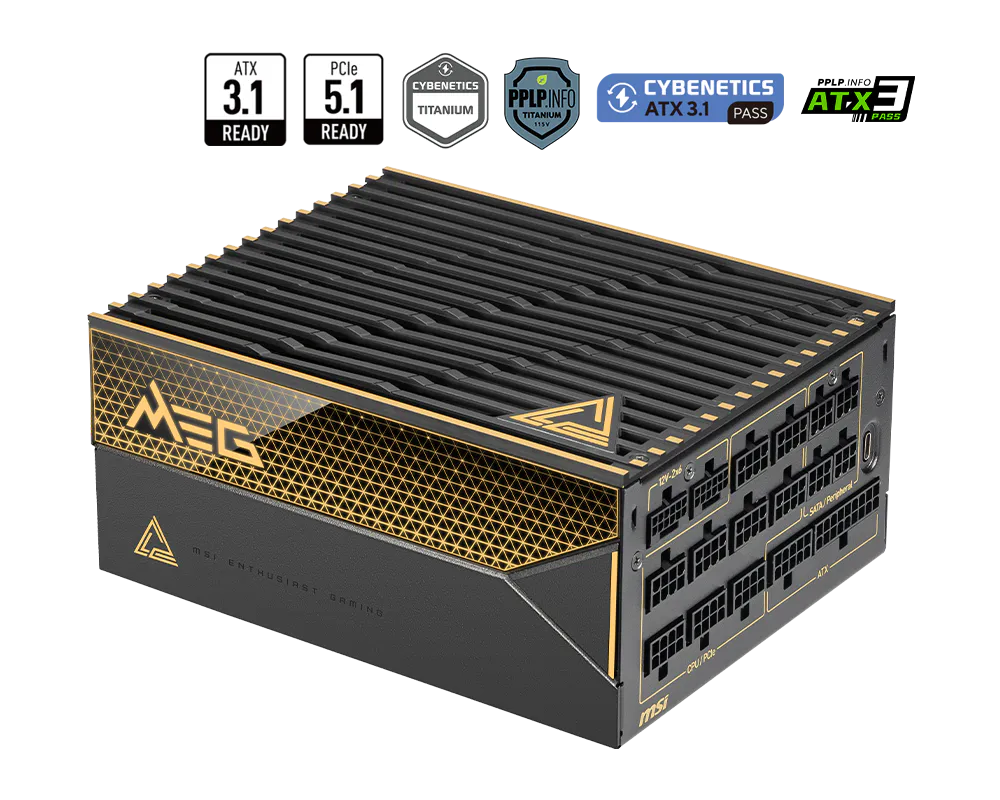

MEG Ai1600T PCIE5

SHOP NOW

WEIGHT (CARD)
Dimensions
Modular
Fan Bearing
Bearing Type
Rated Speed
Power Watt
Input Voltage Range
Power Excursion
Air Flow
Static Air Pressure
Input Frequency
ATX (24 pin)
Connector
Efficiency Rating
Life Expectancy
EPS (4+4 PIN)
PCI-E 5.1 (16 pin)
Fan Size
Dimensions (DxWxH)
PCI-E (6+2 pin)
PFC Type
SATA (15 pin)
Protection
MOLEX (4 pin)
UPC

WEIGHT (CARD)

169g

Dimensions

120mm x 120mm x 25.6mm

Modular

Yes (Fully Modular)

Fan Bearing

Double Ball Bearing

Bearing Type

Hydro-Dynamic Bearing

Rated Speed

500 - 1800 ±15% RPM

Power Watt

1600W

Input Voltage Range

100-240

Power Excursion

3840W (*up to 240% of the PSU's rated power for 100μs)

Air Flow

19.79 - 71.27 CFM

Static Air Pressure

0.16 - 2.09 mm-H20

Input Frequency

50~60 Hz

ATX (24 pin)

Connector

4-Pin PWM/DC

Efficiency Rating

80 PLUS Titanium (up to 94%)

Life Expectancy

MTTF 150,000 Hours (25℃)

EPS (4+4 PIN)

PCI-E 5.1 (16 pin)

2 (600W)

Fan Size

135 mm

Dimensions (DxWxH)

190 x 150 x 86 mm

PCI-E (6+2 pin)

PFC Type

Interleaved PFC

SATA (15 pin)

Protection

OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO

MOLEX (4 pin)

0824142374818
