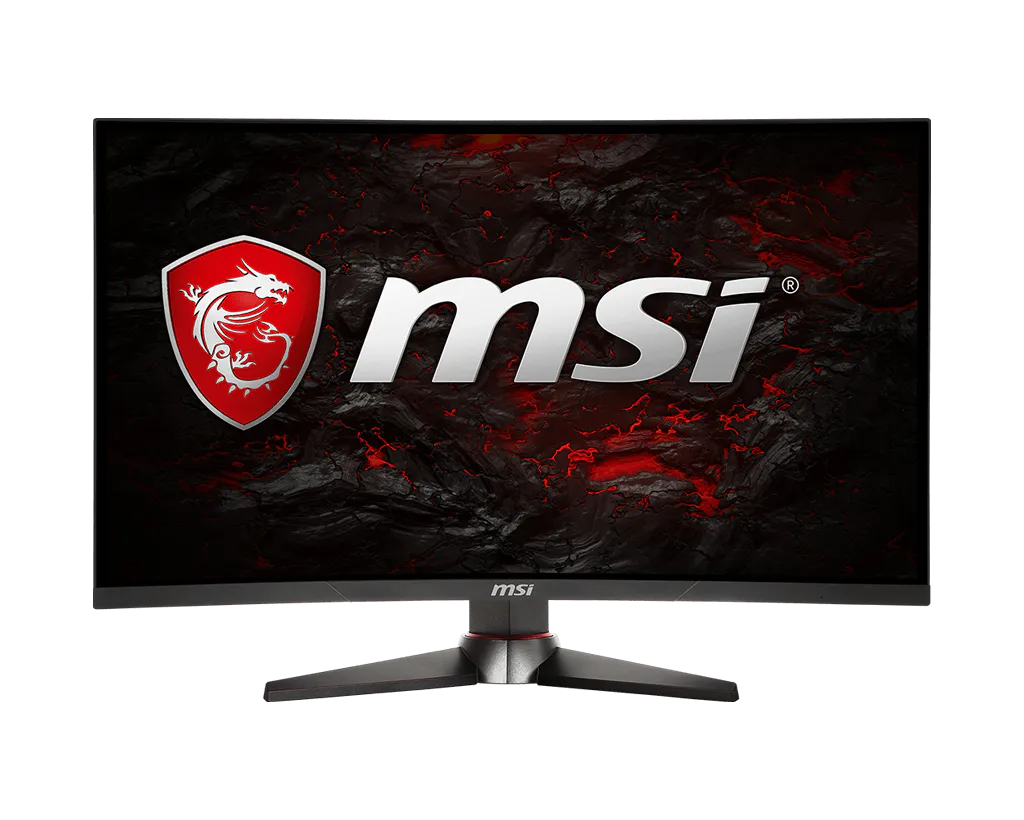

MSI Optix MAG240CR – Redefine eSports rules | eSports Gaming Monitor

Optix MAG240CR

Panel Size
Panel Resolution
Refresh Rate
Response time
Panel Type
Brightness (nits)
Viewing Angle
Aspect Ratio
Contrast Ratio
DCR
Pixel Pitch (H x V)
Surface Treatment
Display Colors
DCI-P3 / sRGB
Video ports
Audio ports
Active Display Area (mm)
Kensington Lock
VESA Mounting
Control
Power Type
Power Input
Signal Frequency
Adjustment (Tilt)
Adjustment (Swivel)
Curved
Adjustment (Height)
Power consumption
Dimension (W x H x D)
Weight (NW / GW)
Note

Panel Size

23.6" (60 cm)

Panel Resolution

1920 x 1080 (FHD)

Refresh Rate

144Hz (OC 165Hz)

Response time

1ms (MPRT)

Panel Type

Brightness (nits)

250 cd / m2

Viewing Angle

178° (H) / 178° (V)

Aspect Ratio

16:9

Contrast Ratio

3000:1

100000000:1

Pixel Pitch (H x V)

0.27156 (H) x 0.27156 (V)

Surface Treatment

Anti-glare

Display Colors

16.7M

DCI-P3 / sRGB

97.46% / 124.13%

Video ports

1x Display Port (1.2)
1x HDMI™ (2.0)
1x HDMI™ (1.4a)

Audio ports

1x Earphone out

Active Display Area (mm)

521.3952(H) x 293.2848(V)

Kensington Lock

Yes

VESA Mounting

75 mm x 75 mm

Control

5-way OSD navigation joystick

Power Type

External Adaptor 12V 4A

Power Input

100~240V, 50~60Hz

Signal Frequency

30 to 160KHz
60 to 165Hz

Adjustment (Tilt)

-5° ~ 20°

Adjustment (Swivel)

-30° ~ 30°

Curved

1800R

Adjustment (Height)

0 ~ 65 mm

Power consumption

33W

Dimension (W x H x D)

536.6 x 389.3 x 205.4 mm ; 21.13 x 15.33 x 8.09 inch

Weight (NW / GW)

4.89kg / 7.1kg ; 10.78lbs / 15.65lbs

Note

Display Port: 1920 x 1080(Up to 165Hz)
HDMI™ 2.0: 1920 x 1080 (Up to 165Hz)
HDMI™ 1.4a: 1920 x1080 (Up to 144Hz)
DCI-P3 and sRGB follow CIE1976 Standard
